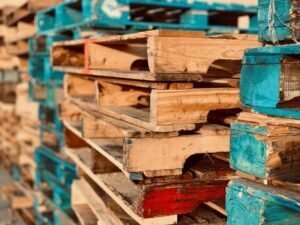

Standard Pallet Sizes & Dimensions. At any rate, so what are standard bed sizes and aspects? Wooden beds normally comprise of three or four stringers that help a few deck sheets, on top of which products are put.

In a bed estimation, the main number is the stringer length and the second is the deck-board length. Square or almost square beds assist a heap with opposing tipping.

Two-way beds are intended to be lifted by the deck sheets. The standard 48″x40″ North American bed, or GMA bed has stringers of 48 inches and deck sheets of 40 inches and was normalized by the Grocery Manufacturers Association.

A standard wooden bed (48 in × 40 in × 6 in or 122 cm × 102 cm × 15 cm) with a static burden bearing limit of 3 short tons (2.7 long tons; 2.7 t) and a 1-short-ton (0.89-long-ton; 0.91 t) dynamic limit, will weigh roughly 33 to 48 lb. (15 to 22 kg) Lightweight plastic beds can weigh just 3 to 15 pounds (1.4 to 6.8 kg), while heavier models might weight as much as 300 pounds (140 kg).

Standard GMA Pallets

“Standard GMA beds can hold as much as 460 pounds (210 kg). GMA beds normally weigh 37 pounds (17 kg) and are 6 1⁄2 inches (170 mm) tall. Their deck sheets measure 3 1⁄4 inches (83 mm) wide and 5⁄16 inches (7.9 mm) thick. Different elements of beds have different weight limits.

Hard core IPPC Pallets are roughly 44 inches (1,118 mm) wide by 48 inches (1,219 mm) long, have three wood stringers that are an ostensible 4 inches (102 mm) high by 3 inches (76 mm) wide lumber, and weigh around 135 pounds (61 kg). Their deck is completely covered by 30 mm (1.18 in) compressed wood and is painted in blue in European and Russian nations.

Four-way beds or beds for weighty loads (or universally useful frameworks that could have weighty burdens) are best lifted by their more inflexible stringers. These beds are normally heavier, greater, and more sturdy than two-way beds.

Standard Pallet Sizes

Bed clients maintain that beds should effectively go through structures, stack and fit in racks, be open to forklifts and bed jacks, and capacity in mechanized stockrooms. To try not to deliver air, beds ought to likewise pack firmly inside between modular holders and vans.

No generally acknowledged guidelines for bed aspects exist. Organizations and associations use many different bed sizes all over the planet. While no single-layered standard oversees bed creation, one or two sizes are generally utilized.

ISO Pallet Standard Pallet Size

The American National Standards Institute (ANSI), for instance, was laid out in 1918 so a task going up in one state could utilize braces and bolts made in one more state with negligible trouble. Following the Second World War, these public bodies met up to work with exchange. The International Organization for Standardization (ISO) was laid out, and it has made worldwide principles for aspects and measures from that point onward.

Consenting to ISO principles makes development simpler down the line for a business, and this applies not exclusively to assembling yet in addition to transportation and warehousing stockpiling. In any case, organizations searching for ISO standard bed size aspects will not have a lot of karma. That is on the grounds that there isn’t any single bunch of ISO principles for beds, just particulars perceived by ISO.

ISO Pallet Size Specifications

Dimension
(W × L) mm
Dimension
(W × L) in
Wasted floor, ISO containerThe region most used in
1016 × 121940.00 × 48.003.7% (20 pallets in 40 ft ISO)North America
1000 × 120039.37 × 47.246.7%Europe, Asia; similar to 40″ × 48″
1165 × 116545.9 × 45.98.1%Australia
1067 × 106742.00 × 42.0011.5%North America, Europe, Asia
1100 × 110043.30 × 43.3014%Asia
800 × 120031.50 × 47.2415.2%Europe; fits many doorways
ISO Pallet Standard Pallet Size

North American Pallet Standard Pallet Size

Of the top beds utilized in North America, the most regularly utilized by a wide margin is the Grocery Manufacturers Association (GMA) bed, which represents 30% of all new wood beds created in the United States. The ISO additionally perceives the GMA bed impression as one of its six standard sizes.

North American Pallet Size Specifications

Dimension
(W × L) mm
Dimension
(W × L) in
Production
Rank
Industries Using
1016 × 121940 × 481Grocery, many others
1067 ×106742 × 422Telecommunications, Paint
1219 × 121948 × 483Drums
1219 × 101648 × 404Military, Cement
1219 × 106748 × 425Chemical, Beverage
1016 × 101640 × 406Dairy
1219 × 114348 × 457Automotive
1118 × 111844 × 448Drums, Chemical
914 × 91436 × 369Beverage
1219 × 91448 × 3610Beverage, Shingles, Packaged Paper
889 × 115635 × 45.5UnknownMilitary ​12 ISO container, fits 36″ standard doors
2240 × 274088 ×108UnknownMilitary air cargo
1219 × 50848 × 20UnknownRetail
North American Pallet Standard Pallet Size

European Beds or Euro Standard Pallet Size

The Euro bed is a block bed that has aspects of 800mm by 1200mm. The bed seems to be a customary American bed, yet it likewise has a case on top of the bed that is intended to hold items set up. The outward presentation of the bed makes it seem to be a rough pontoon or boat plan.

All standard bed size Euro beds should be stepped with the EUR logo to be “official” beds. They are additionally here and there called “E” beds. As anyone might expect, there are no authority Euro bed producers in the US. There are additionally no authorized fix offices for the beds.

To involve a similar plan as the Euro bed, there are choices accessible. These beds are known as “Euro collar” beds and very closely resemble the authority bed plan. Some even come in the 800 by 1200mm size too, however other size choices are additionally accessible. These collars have a steel lip that assists them with fitting over customary wood beds for additional security and strength.

There is likewise a second sort of Euro bed that is utilized in the European synthetic industry. These beds are designated “CP” beds. These standard bed sizes are explicitly intended to oppose compound openness and are produced using both wood and plastic.

Euro Pallet Size Specifications

EURO Pallet TypeDimension (W × L × D)ISO Pallet Alternative
EUR800 mm × 1,200 mm × 145 mmISO1, the same size as EUR
EUR 131.50 in × 47.24 in × 5.71 inThe pallet weight is 20 – 25 kg.
Weight of a load: 2490 kg.
EUR 21,200 mm × 1,000 mm × 144 mm
47.24 in × 39.37 in × 5.67 in
ISO2. The pallet weight is 33 kg.
Weight of a load: 1470 kg.
EUR 31,000 mm × 1,200 mm × 144 mm
39.37 in × 47.24 in × 5.67 in
The pallet weight is 29 kg.
Weight of a load of 1920 kg.
EUR 6800 mm × 600 mm × 144 mm
31.50 in × 23.62 in × 5.67 in
ISO0, half the size of EUR
The pallet weight is 9.5 kg.
Weight of the safe load: 500 kg.
600 mm × 400 mmquarter the size of EUR
23.62 in × 15.75 in
400 mm × 300 mmone-eighth the size of EUR
15.75 in × 11.81 in
European Beds or Euro Standard Pallet Size

Australian Standard Pallet Size

Australian standard beds are square softwood or hardwood beds that are standard in Australia and non-standard elsewhere on the planet.

The standard Australian bed size is are 1165 × 1165 mm in size and fits precisely in the RACE (holder) of the Australian rail lines. They are inappropriate for the standard 20 feet (6.1 m) and 40 feet (12 m) ISO transporting holders utilized all over the planet.

Australian Pallet Size Specifications

Dimension
(W × L) inch decimal
Dimension
(W × L) inch fraction
Dimensions
(W × L) inch millimeter
MaterialsUsed In
45.87 x 45.8745 7/8 x 45 7/81165 x 1165Hardwood
Can also be manufactured
using lighter timber
Storage and warehousing
Australian Standard Pallet Size
